Effects Bakery MECHA-PAN BAKERY Series MECHA-CREAM PAN BOOSTER

Hello sweet sound seekers! 🎸✨

This is your cute guide to the MECHA-CREAM PAN BOOSTER, a fun and friendly pedal from the magical ovens of Effects Bakery’s MECHA-PAN BAKERY Series. It has been modified to be even more sparkly and clear than the original Cream Pan Booster so you can turn up your guitar tone and make it shimmer just the way you like. Let’s us learn how to use your new tone buddy together!

1 WHAT IS THE MECHA-CREAM PAN BOOSTER?

The MECHA-CREAM PAN BOOSTER is a clean and transparent booster pedal based on the classic Cream Pan Booster from Effects Bakery. It has been upgraded for more versatility and sparkle and adds volume and body to your sound without losing clarity. Whether you want warm richness or bright detail, this pedal gives you gentle and musical control.

2 WHAT DOES MODIFIED MEAN HERE?

Modified means we changed and improved the original design. In pedal talk, a modification usually means tweaking the circuit or adding new features. In this case, we took our own Cream Pan Booster and made it more flexible and detailed. It is like your pedal got a happy little upgrade from the bakery.

3 MAIN FEATURES

• Clean and transparent boost
• Smooth volume increase with a touch of body
• Internal switches to adjust brightness and clarity
• Works well with tube amps and distortion pedals
• MODE switch offers subtle tone balance changes

4 HOW TO USE YOUR MECHA-CREAM PAN BOOSTER

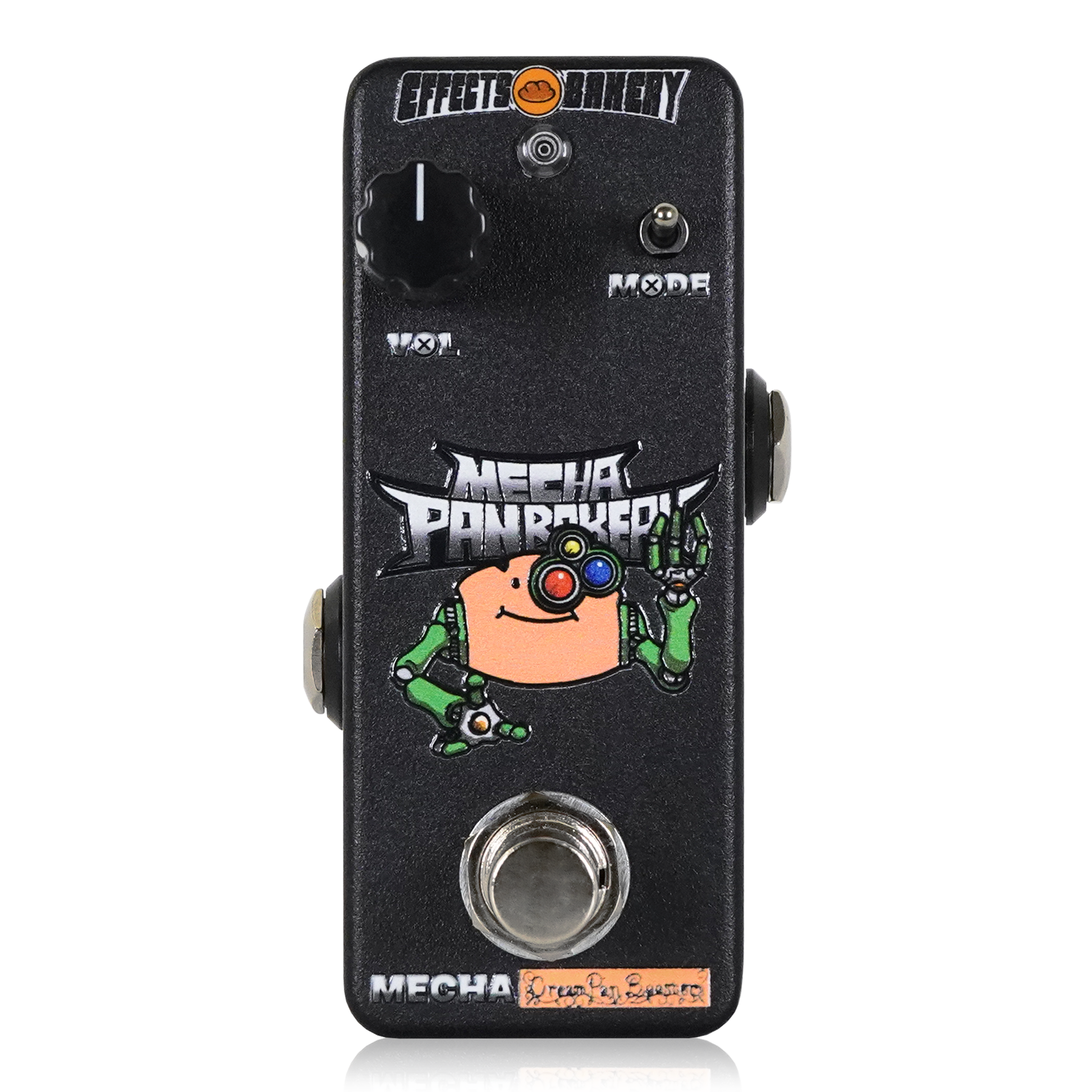

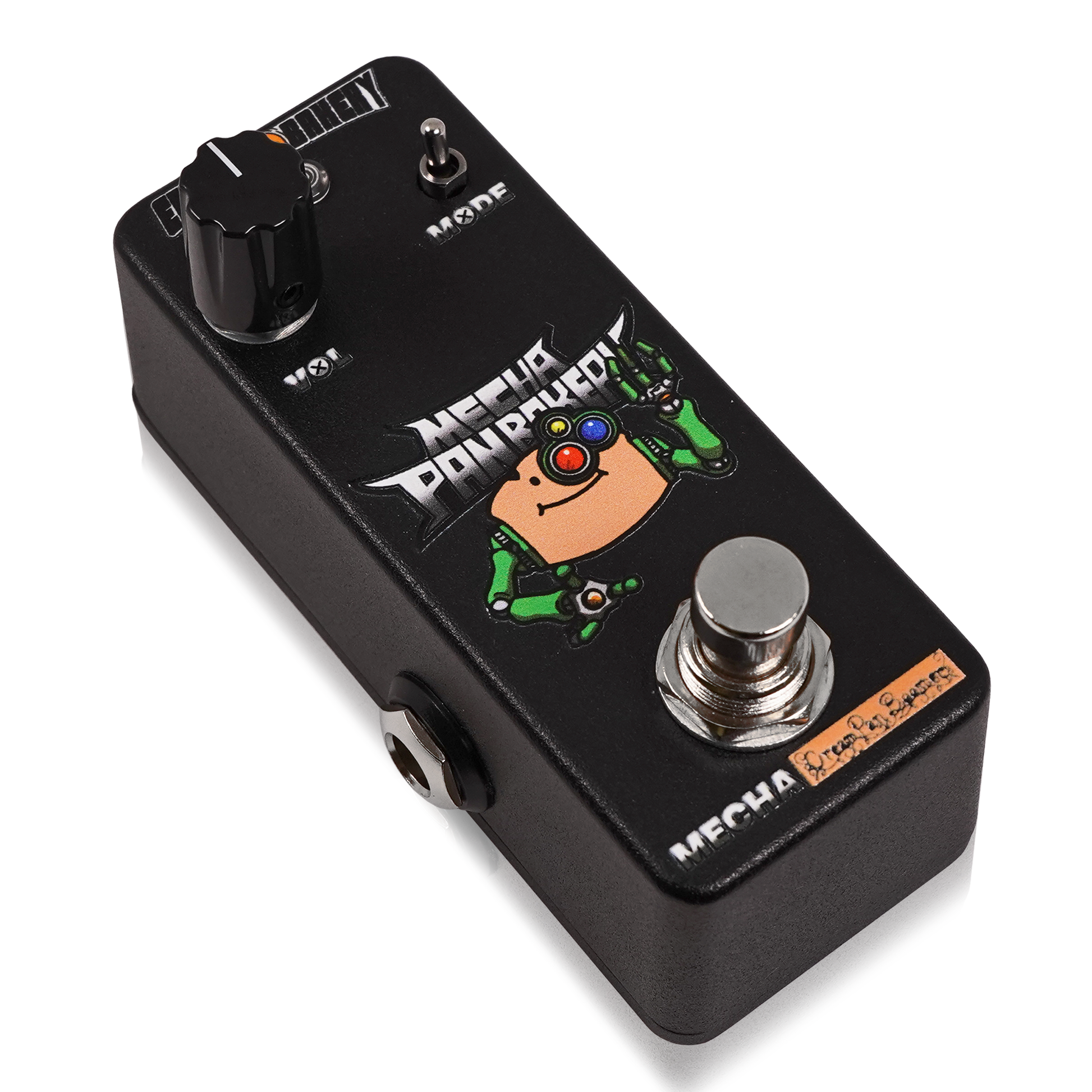

Top Controls
VOL: Adjusts the output level Turn it up to make your guitar signal louder and fuller.
MODE: Switch Changes the tone balance. The difference is small but noticeable, especially with tube amps or when stacking with other effects.

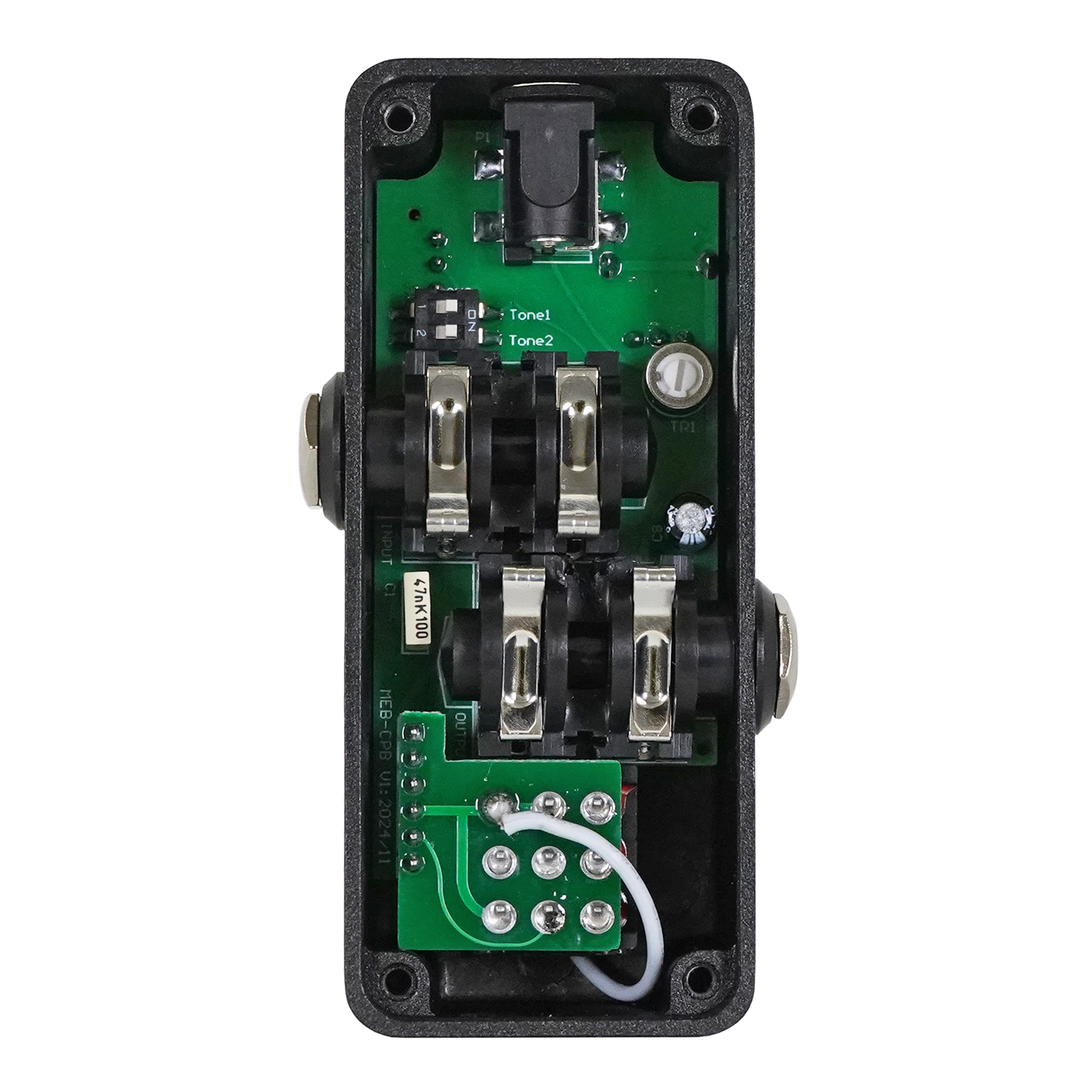

Internal Controls located inside the case
TONE1 Switch: Adds sparkle and brightness Flip this to get more shine in your tone.
TONE2 Switch: Increases clarity especially when the VOL knob is around the middle range.

Tip: Only open the case and change these switches when the pedal is unplugged.

5 TECHNICAL DETAILS

Type: Booster

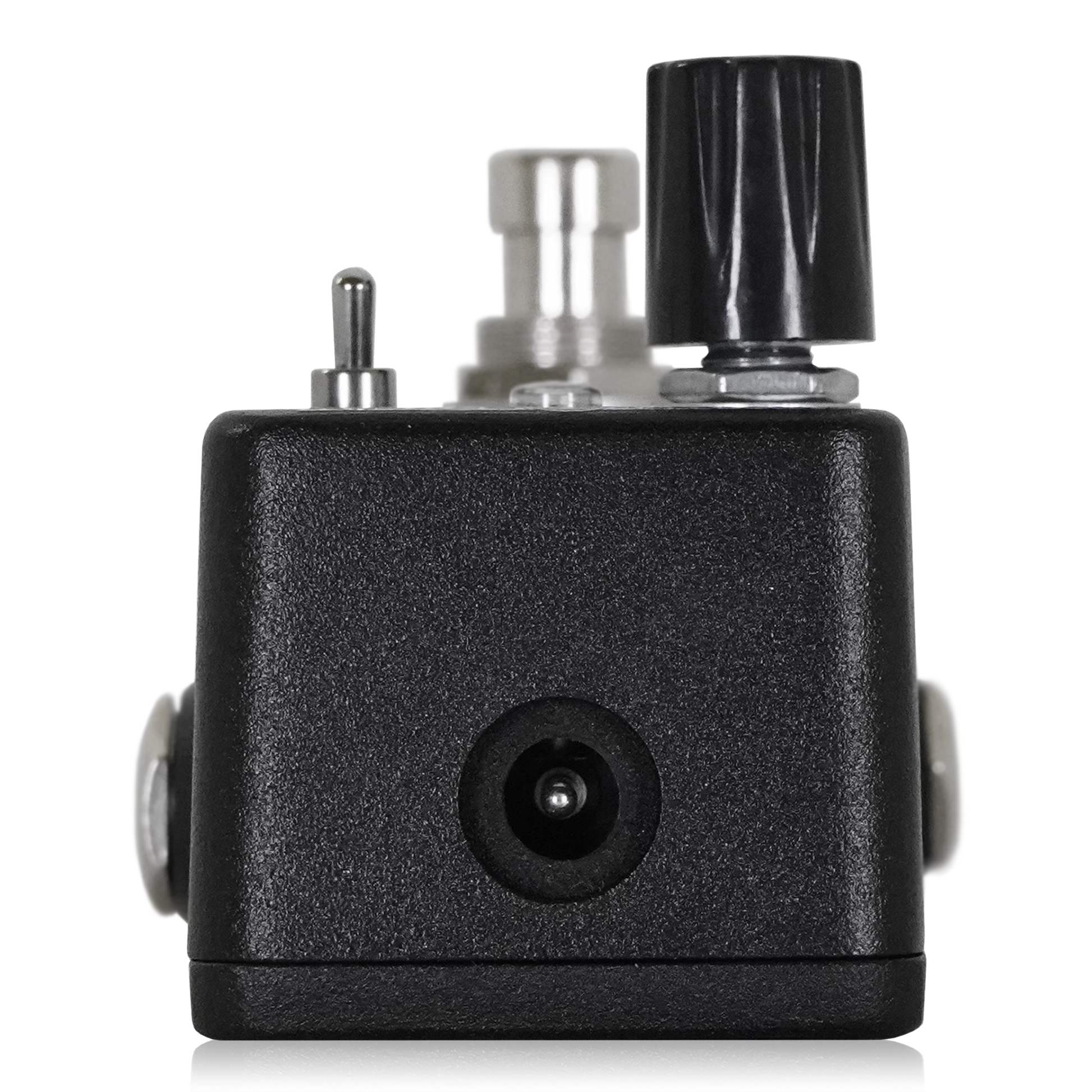

Adapter: DC 9V center minus
Battery powered: No
Current consumption: 4mA
Input impedance: 1 megaohm
Output impedance: 1 kiloohm
Internal trim pot: For factory adjustment only Do not touch

6 SETUP INSTRUCTIONS

Plug your guitar into the input jack.
Connect the output jack to your amp or another pedal.
Plug in a 9V center minus power adapter.
Adjust the VOL knob and try the MODE switch.
If you want to shape your tone more, open the case and set the TONE1 and TONE2 switches.

7 TIPS

Use this pedal at the beginning of your signal chain for a clean boost or after drive pedals to push them into tastier sound flavors.
Try it with a tube amp to hear the soft shimmer come to life.
Even small adjustments can make your tone feel better and play easier.

Thank you for choosing the MECHA-CREAM PAN BOOSTER from Effects Bakery!
We hope it adds joy and sparkle to your guitar sound and you keep baking up beautiful tones with us.
